Mga bro lets play about cisco network diagram, ill gv a simple network problem who can solve ds cya nasad ang mohatag para atong e solve nato . ds can help for all CISCO student and other IT Student


Problem No.

Show ds link

http://i1018.photobucket.com/albums/...iscosample.jpg

Good luck mga bro

[giancarlo]

Any one here i know daghan nato dri makabalo ug networking

[giancarlo]

Hello asa naman to dri ang mga bang giitan na mga tech guys.. ds s ur time to show ur talent and gv also idea sa uban or bcn ma hadlok mo share sa inyong talent...

[giancarlo]

Ill gv hint for ds u can use any device even not a cisco machine... try to solve ds using windows server 2003.... both end

[kenjie86]

Hala nose bleed tah ani....

[kenjie86]

Patudlo lng ko bro... unsa on d i nah? butangan ra ug cable?

[sleepydeepeyed]

i think nagsugod na ang mga bangiitan ug solve ron..so wait lng ta mo post sila para sad ka makakuha og idea.

[giancarlo]

Patudlo lng ko bro... unsa on d i nah? butangan ra ug cable?

all u hav to do is to configure the router to connect both pco and pc1 with a different IP or the windows server 2003... hint windows 2003 use routing protocol

[giancarlo]

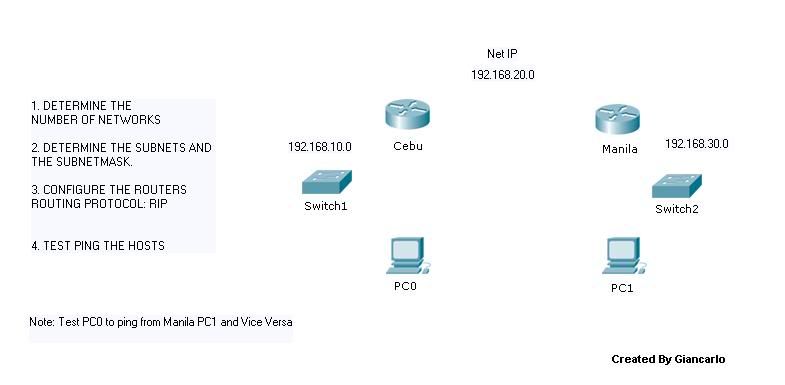

ill gv the IP for PC0 192.168.10.10 and PC1 192.168.30.10 should ping and rercognized the IP each..

Router Cebu 192.168.20.1
Router Manila 192.168.20.2

Note Ds is only a network simulation but you can apply ds in a real world

[kensh1n]

Cebu Router config

Building configuration...

Current configuration : 431 bytes
!
version 12.2
no service password-encryption
!
hostname Cebu
!
ip ssh version 1
!
interface FastEthernet0/0
ip address 192.168.10.1 255.255.255.0
duplex auto
speed auto
!
interface Serial0/0
no ip address
shutdown
!
interface Serial0/1
ip address 192.168.20.1 255.255.255.0
clock rate 64000
!
router rip
network 192.168.10.0
network 192.168.20.0
!
ip classless
!
line con 0
line vty 0 4
login
!
end
